WBG-QL480 Series three-dimensional overwrapping machine

Product Features：

An seal packed： waterproof， moistureproof， antipollution, anti-channel conflict.

Instant sealed, and sealing station does not pile materials： close to cold wrapping, has no effect on the heat-sensitive products such as medicine.

Double servo control system to ensure stable operation of equipment, control static electricity.

Full automatic: feeding, standing, sorting, packaging, hot sealing, counting.

Taking PLC as the center of electric controlling system to ensure the equipment is operated in a stable and reliable state, and performance is more stable.

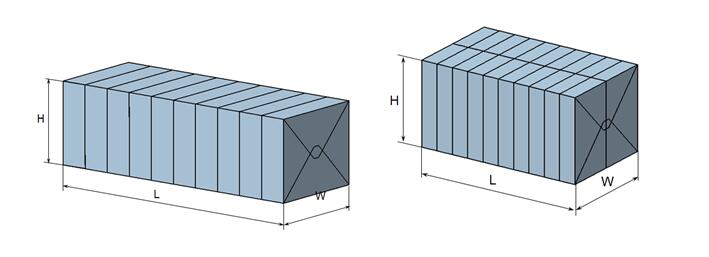

Packing speed is adjusted steplessly. Changing folded board can achieve to pack different dimensions of box–type products (big or small, high or low, wide or narrow).

Scope of Application:

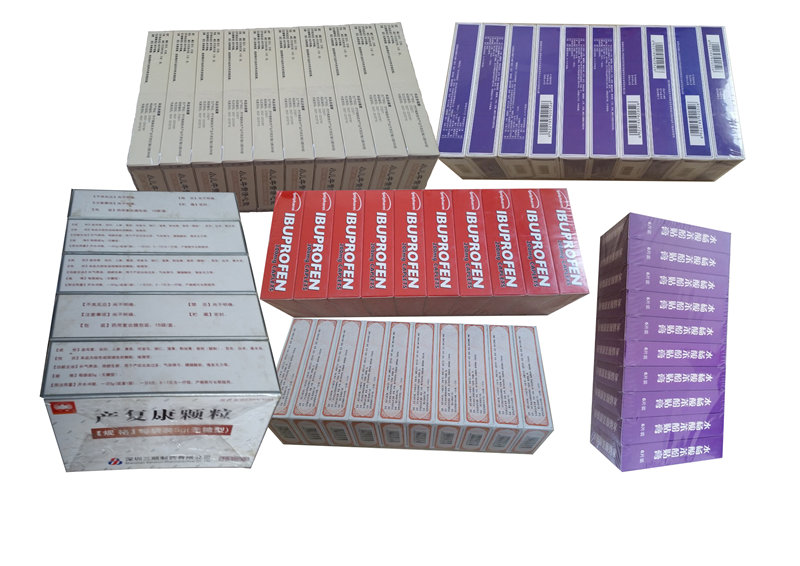

This product is suitable for  high speed line flat boxes automatic feeding, standing, sorting, packaging, hot sealing, counting.

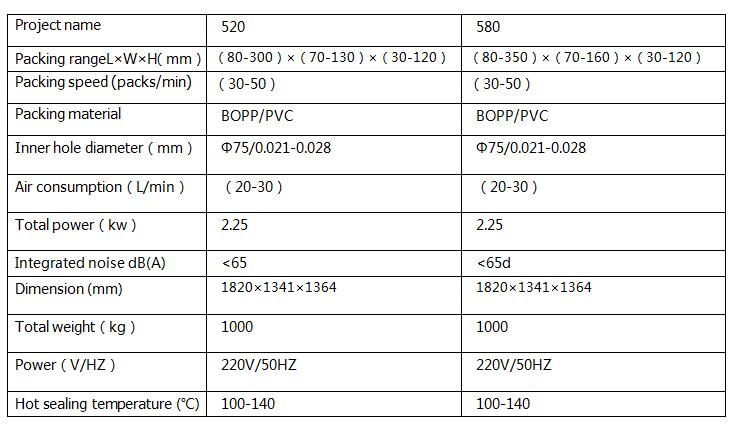

The main technical parameters:
